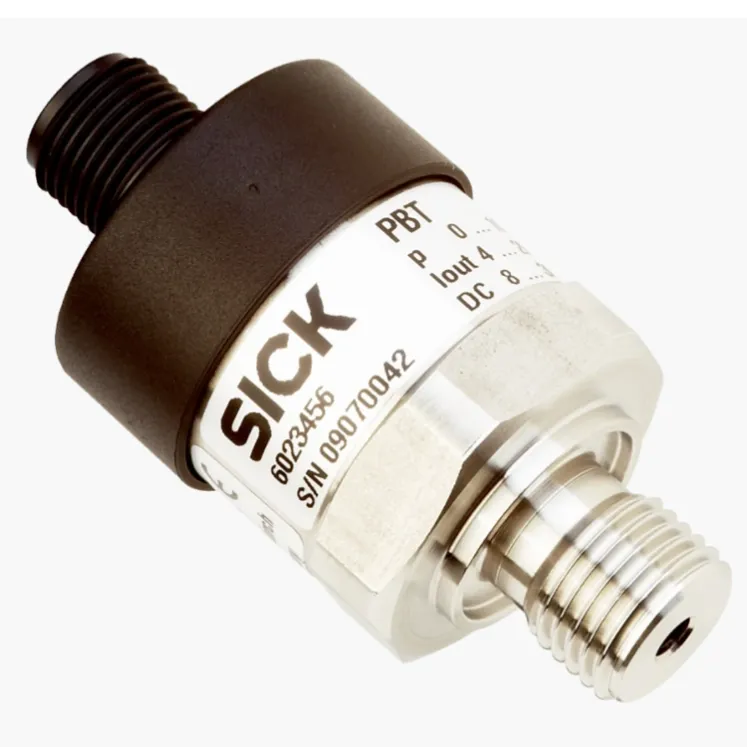

SICK PBT-RB010SGTSSNALA0Z Sensor
SICK PBT-RB010SGTSSNALA0Z pressure transmitter, part 6048837. 0-10 bar, 4-20 mA analog output for hydraulic and pneumatic monitoring.
Overview
The SICK PBT-RB010SGTSSNALA0Z (part number 6048837) is an electronic pressure transmitter of the PBT family for liquids and gases. With a measuring range of 0 ... 10 bar and a 4 ... 20 mA output signal, it converts process pressure into a precise analog value for machine monitoring and control.
How It Works
The process pressure acts on a piezoresistive measuring cell behind the stainless pressure port. The electronics convert the cell signal into a linear 4 ... 20 mA output proportional to pressure, which the machine control or monitoring system evaluates continuously.
Key Features
- Measuring range 0 ... 10 bar
- Linear 4 ... 20 mA analog output
- Stainless steel pressure port for industrial media
- Part number 6048837
- Compact cylindrical design for tight installation
- Suitable for hydraulic and pneumatic monitoring
Typical Applications
- Hydraulic system pressure monitoring on presses and machines
- Pneumatic supply supervision on production lines
- Process pressure measurement in lubrication systems
- Clamping and chucking pressure verification
- Condition monitoring of pumps and compressors
Specifications
Attribute | Value |
|---|---|
Model | SICK PBT-RB010SGTSSNALA0Z |
Part number | 6048837 |
Measuring range | 0 ... 10 bar |
Output signal | 4 ... 20 mA |
Family | PBT pressure transmitters |
Installation and Setup Notes
Install the transmitter at a point that represents the process pressure, using a suitable seal compatible with the medium. Avoid over-tightening the threaded port and route the cable with strain relief. Verify the zero point and span occasionally with a reference gauge as part of the maintenance routine.
Frequently Asked Questions
Which media can it measure?
Liquids and gases compatible with the stainless wetted materials of the pressure port.
Why a 4 ... 20 mA output?
It is the industrial standard for analog transmission, allowing long cable runs and broken-wire detection below 4 mA.
Is display or switching available?
The PBT family includes variants with display and switching functions; this variant provides the analog output.
Related Distance and Measurement Sensors
