Distance and Measurement Sensors
SICK PFG05-E1KM0160 Sensor
SICK PFG05-E1KM0160 wire draw encoder, EcoLine, part 1060971. Draw-wire position measurement up to 10 m with RS-422 incremental output.
Overview

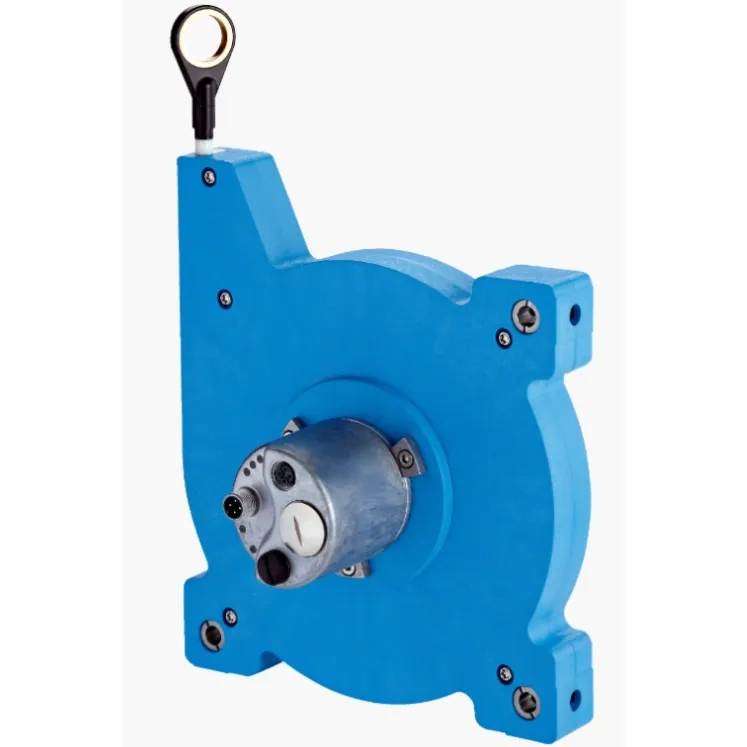

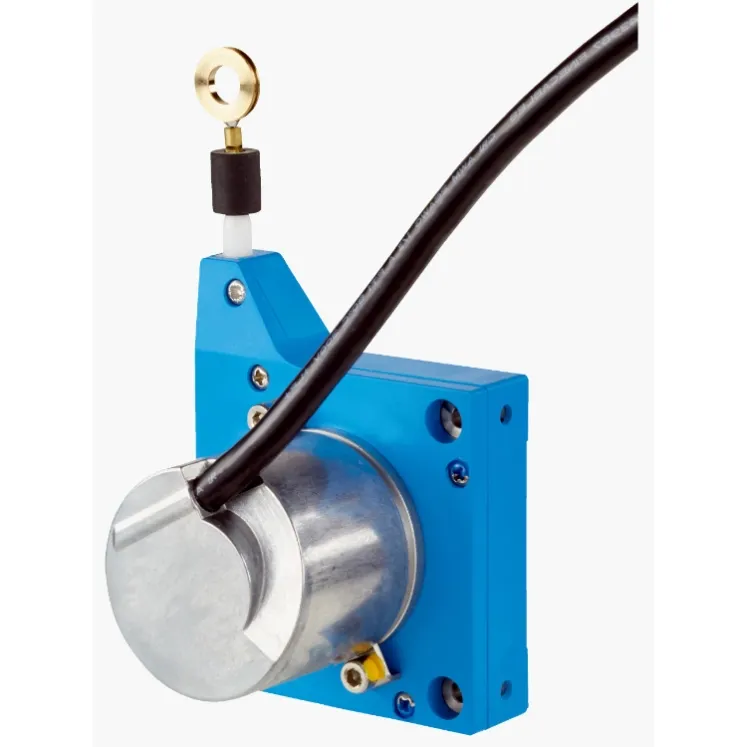

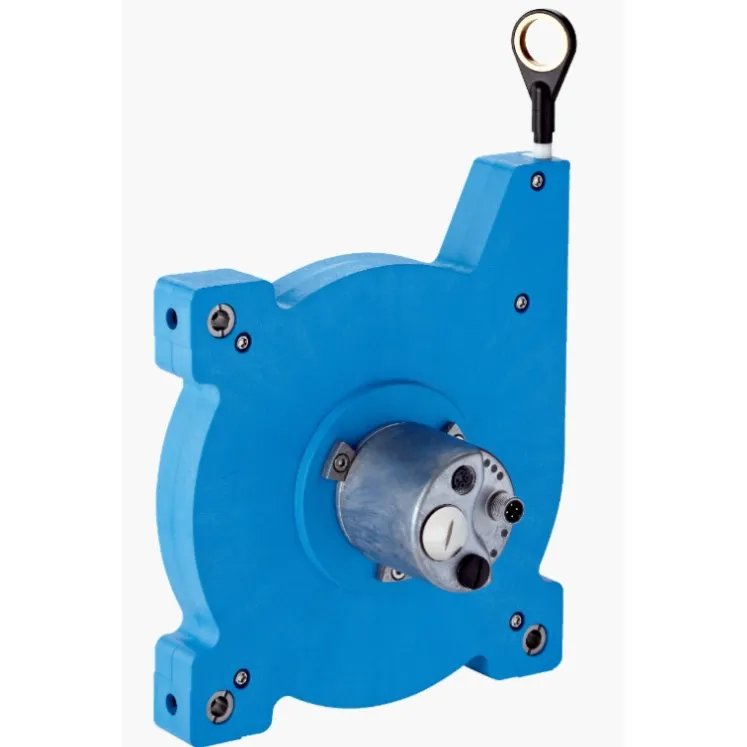

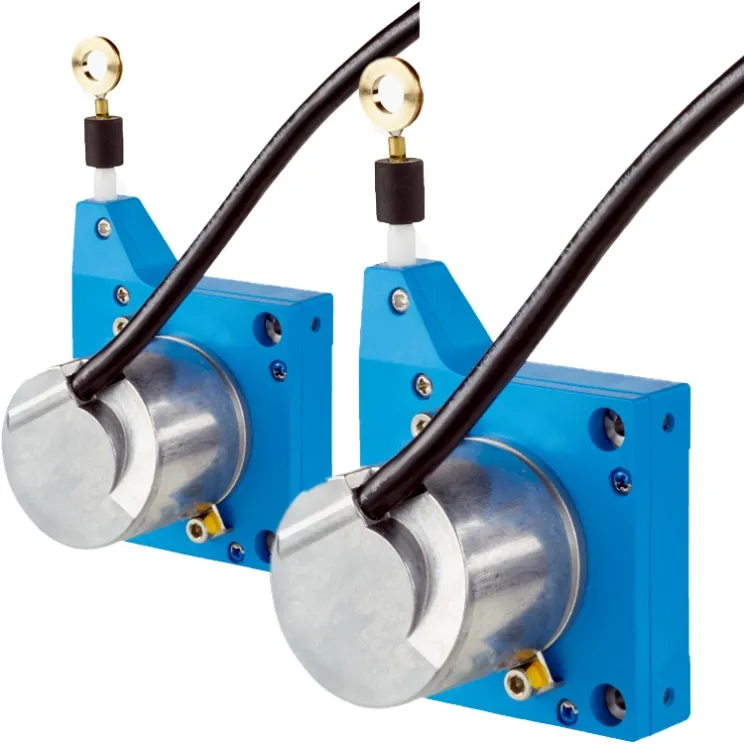

The SICK PFG05-E1KM0160 (part number 1060971) is a wire draw encoder of the EcoLine series. A stainless measuring wire exits the lightweight housing and attaches to the moving object; as the object travels, the wire turns an integrated encoder, providing precise length and position measurement up to the family range of 1.25 m to 10 m.
How It Works
A spring mechanism keeps the measuring wire under constant tension. Movement of the attached object rotates the wire drum and the connected incremental encoder. The E1KM variant outputs incremental signals (RS-422) proportional to travel, delivering repeatable position values with a repeatability of up to about 0.2 mm.
Key Features
- Wire draw position measurement up to family ranges of 1.25 m ... 10 m
- Incremental RS-422 output (E1KM variant)
- Highly flexible stainless measuring wire, PA-sheathed
- Repeatability up to approximately 0.2 mm
- Part number 1060971
- Lightweight, shock-resistant plastic housing
Typical Applications
- Height measurement of scissor lifts and work platforms
- Travel measurement on cranes and hoists
- Position feedback on sliding gates and covers
- Length measurement on mobile equipment
- Stroke measurement on hydraulic and pneumatic cylinders
Specifications
Attribute | Value |
|---|---|
Model | SICK PFG05-E1KM0160 |
Part number | 1060971 |
Detection principle | Wire draw encoder (draw wire) |
Output type | Incremental, RS-422 |
Family | EcoLine PFG05 wire draw encoders |
Installation and Setup Notes
Mount the housing so the wire exits without lateral deflection, and attach the wire end so it cannot slip. Never release the wire without securing it, since the spring mechanism retracts quickly. Route the wire clear of sharp edges, and check wire condition periodically as part of maintenance.
Frequently Asked Questions
How does a draw wire compare with a linear encoder?
It converts long, awkward travels into a compact rotating measurement, ideal where a rail-mounted scale is impractical.
What does the 0160 in the order code mean?
It identifies the measuring length configuration of the PFG05 family variant.
Can the wire be replaced?
Wire replacement should follow the family service documentation to preserve spring tension behavior.
