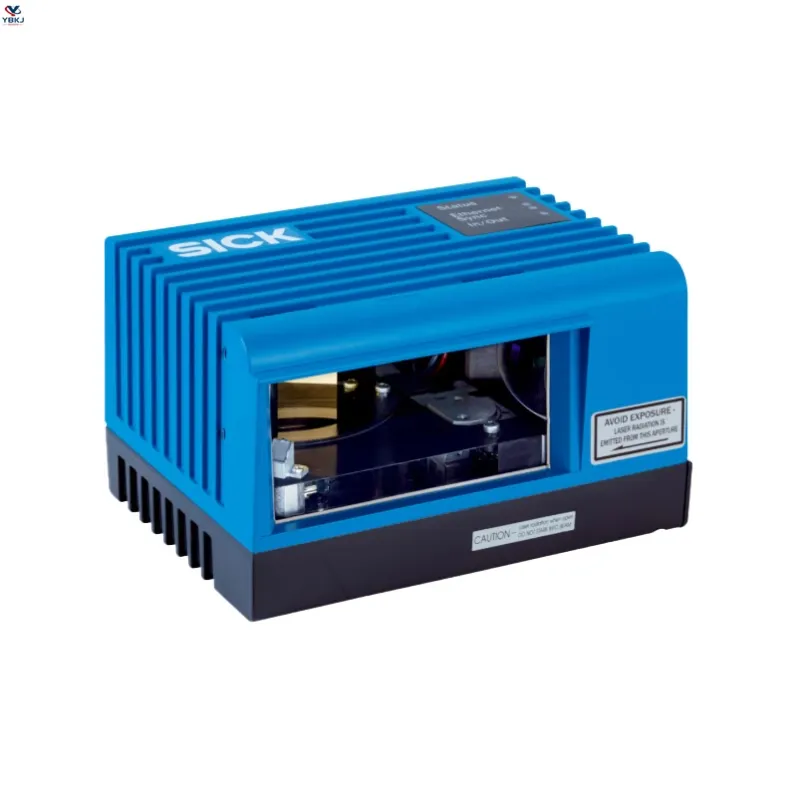

SICK LMS4111R-13000 Sensor
SICK LMS4111R-13000 outdoor 2D LiDAR sensor, part 1091423. Long-range all-weather object detection for ports, mining and mobile machinery.
Overview
The SICK LMS4111R-13000 (part number 1091423) is a 2D outdoor LiDAR sensor of the LMS4000 family. It scans its surroundings in a plane with high angular resolution and range, delivering reliable object detection and area monitoring in demanding outdoor applications such as ports, mining vehicles and heavy mobile machinery.
How It Works
A rotating mirror deflects laser pulses across a wide scanning angle. Distances are computed from the time of flight for each angular step, producing a continuous 2D point cloud of the surroundings. The rugged, heated housing and contaminant-resistant optics keep the scan reliable in outdoor conditions.
Key Features
- Outdoor-rated 2D LiDAR scanning in a defined plane
- Long-range detection with high angular resolution
- Robust housing suited to heavy mobile equipment
- Part number 1091423
- Configurable fields and zones for area monitoring
- Digital interfaces for vehicle and infrastructure integration
Typical Applications
- Object detection on port cranes and heavy handling equipment
- Area monitoring on mining and construction vehicles
- Collision avoidance on large automated transport systems
- Perimeter and approach monitoring at outdoor facilities
- Vehicle surroundings detection in all-weather operation
Specifications
Attribute | Value |
|---|---|
Model | SICK LMS4111R-13000 |
Part number | 1091423 |
Detection principle | Time-of-flight 2D LiDAR scanning |
Family | LMS4000 outdoor LiDAR sensors |
Installation and Setup Notes
Mount the sensor at a height and angle that cover the required detection plane, and shield it where possible from direct high-pressure cleaning jets. Configure scan fields for the application and verify detection with test objects at several distances. Keep the window clean; the outdoor family is tolerant, but heavy soiling still reduces margin.
Frequently Asked Questions
How does it perform in rain or snow?
The LMS4000 outdoor family is designed for all-weather operation; heavy precipitation can cause scattered echoes, which the evaluation filters.
Can it monitor multiple zones?
Yes, configurable fields allow separate warning and detection zones.
Is it a safety device?
The LMS4000 family is an outdoor detection LiDAR; safety-rated applications use the dedicated safety laser scanner families.
