Proximity Sensors

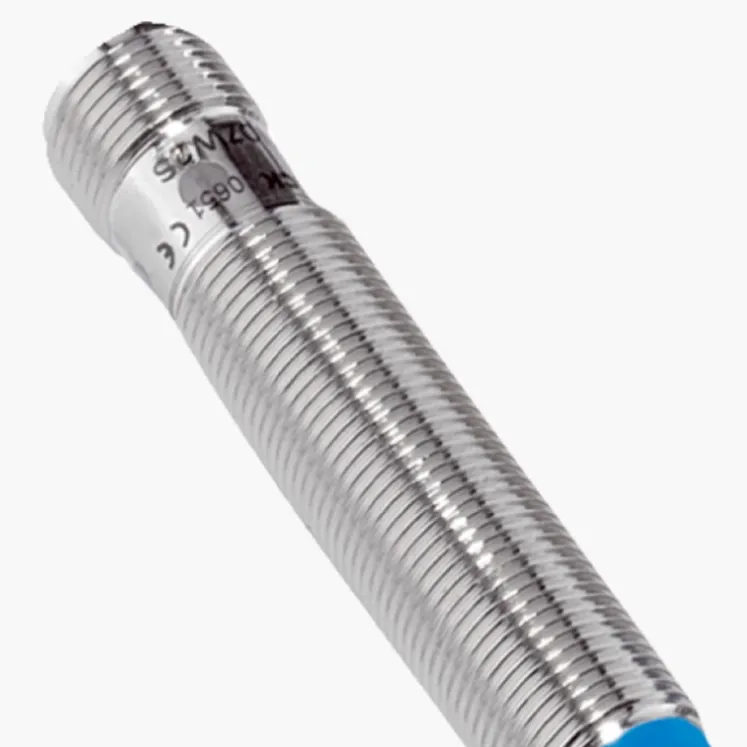

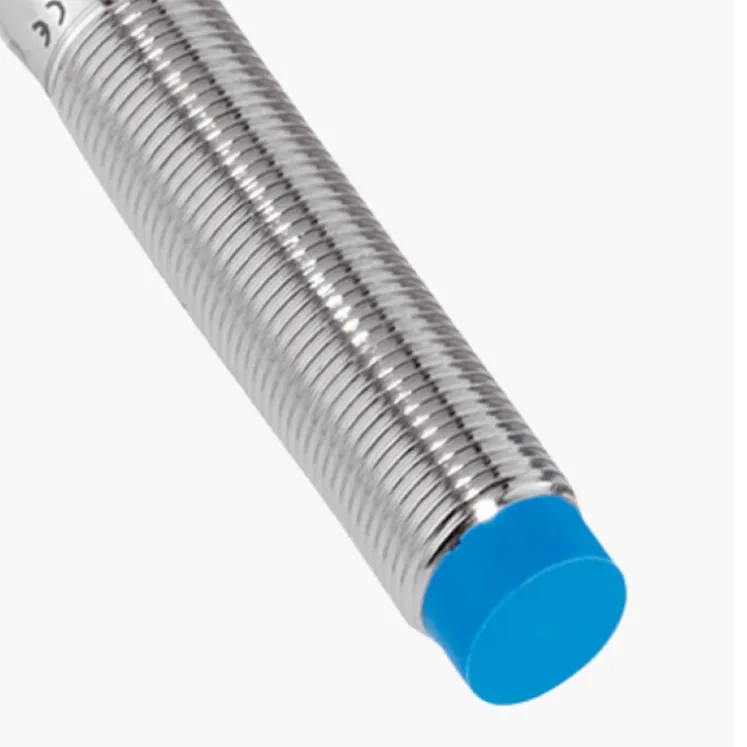

SICK IME12-08NPSZC0S Sensor
SICK IME12-08NPSZC0S inductive proximity sensor. M12 barrel with 8 mm range for contactless metal detection in machine automation.
Overview
The SICK IME12-08NPSZC0S is an inductive proximity sensor of the IME12 family in the M12 threaded barrel format with an 8 mm sensing range. It offers contactless detection of metal objects for general machine automation, providing long service life and dependable switching in harsh production environments.
How It Works
The oscillator at the sensor face generates an electromagnetic field. Metal objects entering the field cause eddy-current damping of the oscillation, and the output switches at the defined damping level. Detection is contactless, repeatable, and unaffected by dust, moisture and ambient light.
Key Features
- Sensing range 8 mm, the largest in the IME12 range classes
- M12 threaded barrel for standard installation
- Contactless, wear-free metal detection
- High switching frequency for dynamic tasks
- Insensitivity to contamination and vibration
- Rugged industrial housing with lock nut
Typical Applications
- End-position monitoring on pneumatic cylinders and slides
- Metal part detection on assembly and handling systems
- Cam and gear tooth sensing for speed monitoring
- Counting of metal components on conveyors
- Position verification in jigs and fixtures
Specifications
Attribute | Value |
|---|---|
Model | SICK IME12-08NPSZC0S |
Detection principle | Inductive proximity sensing |
Sensing range | 8 mm |
Housing format | M12 threaded barrel |
Installation and Setup Notes

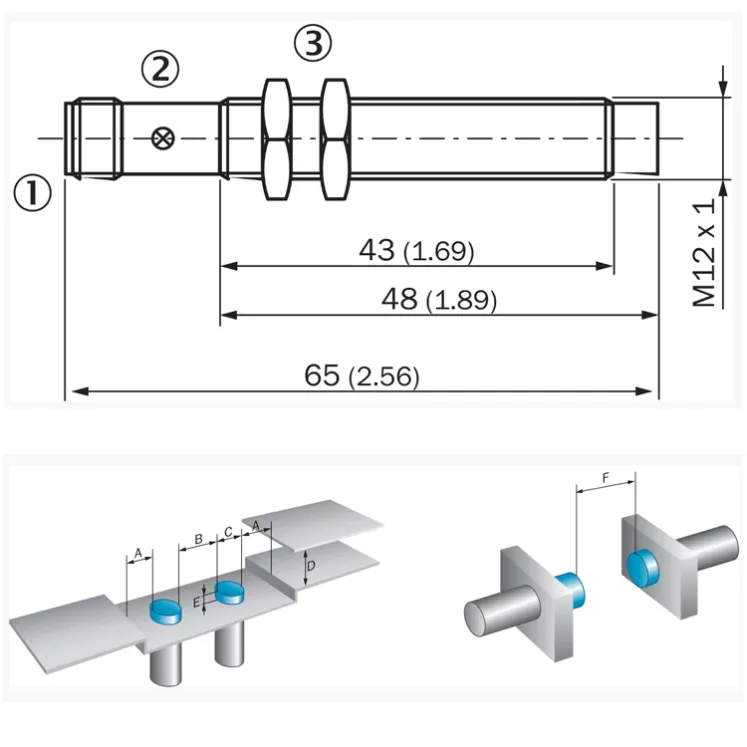

Apply the family's flush or non-flush mounting rule for this variant, because adjacent metal changes the effective range. Secure the barrel with the lock nut at the specified torque and protect the cable exit from abrasion. For non-ferrous targets, account for the reduced effective range in the mechanical design.
Frequently Asked Questions
What does 08 in the order code mean?
It identifies the 8 mm sensing range of this IME12 variant.
Can it be used outdoors?
The sealed housing handles industrial outdoor-adjacent environments within the family ratings; protect the cable from UV and mechanical damage.
Does the target size matter?
The nominal range assumes a standard mild-steel target; smaller targets reduce the effective switching distance.
Related Proximity Sensors
For the variant with connector, see the SICK IME12-08NPSZW2K. For the 6 mm range, see the SICK IME12-06BPSZC0K.
