SICK YG2ASD-030XXXXLECX Sensor
SICK YG2ASD-030XXXXLECX sensor cable, part 2102509. Male-connector cordset with angled exit for compact installations.
Overview
The SICK YG2ASD-030XXXXLECX (part number 2102509) is a pre-assembled sensor cable with male connector from the Y connection technology family. It complements the female cordset family for wiring runs that originate at the control side, with the angled exit easing installation in confined spots.
How It Works
The cordset provides the machine-side connection to sensors via the male circular interface. Factory termination guarantees consistent electrical performance while the angled exit keeps cable routing tidy in compact installations.
Key Features
- Sensor cable with male connector, angled exit
- Part number 2102509
- Factory-terminated connection quality
- Space-saving angled cable exit
- Industrial jacket for machine environments
Typical Applications
- Control-side wiring to circular-interface sensors
- Machine cabling in compact mounting areas
- Consistent cabling across machine platforms
- Replacement cables during maintenance

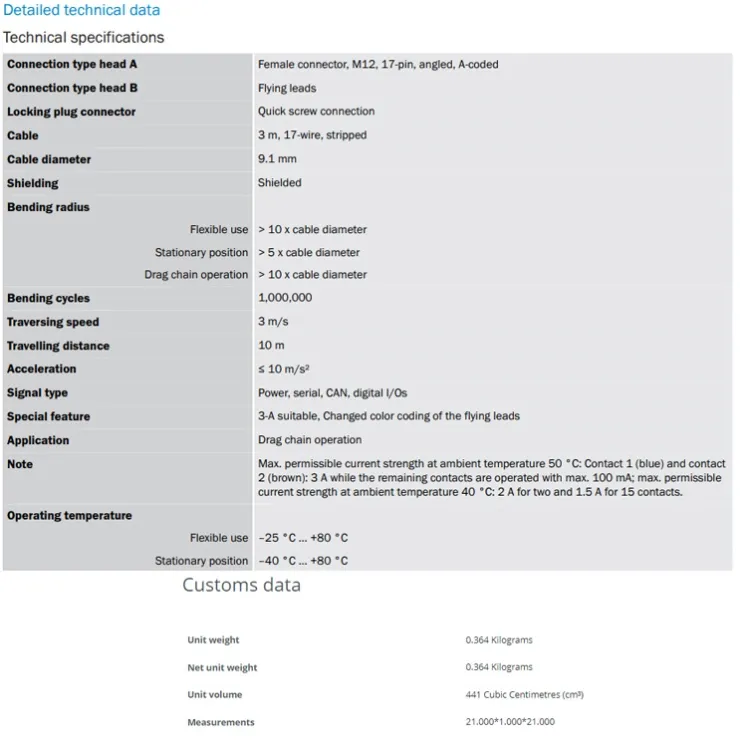

Specifications
Attribute | Value |
|---|---|
Model | SICK YG2ASD-030XXXXLECX |
Part number | 2102509 |
Accessory type | Connection and mounting technology |
Installation and Setup Notes
Install the accessory according to the mating product's documentation, verify secure mechanical fixation and strain relief for cables, and inspect the connection during regular machine maintenance to keep the sensing chain reliable.
Frequently Asked Questions
When is a male connector cable used?
When the wiring run starts at the control side and mates with a sensor-side interface or coupling.
What does 030 identify?
The cable length configuration of this cordset variant.
Does it match the YF family ratings?
The electrical and mechanical ratings follow the family specification for this variant.
