SICK STE-1204-GZ Sensor

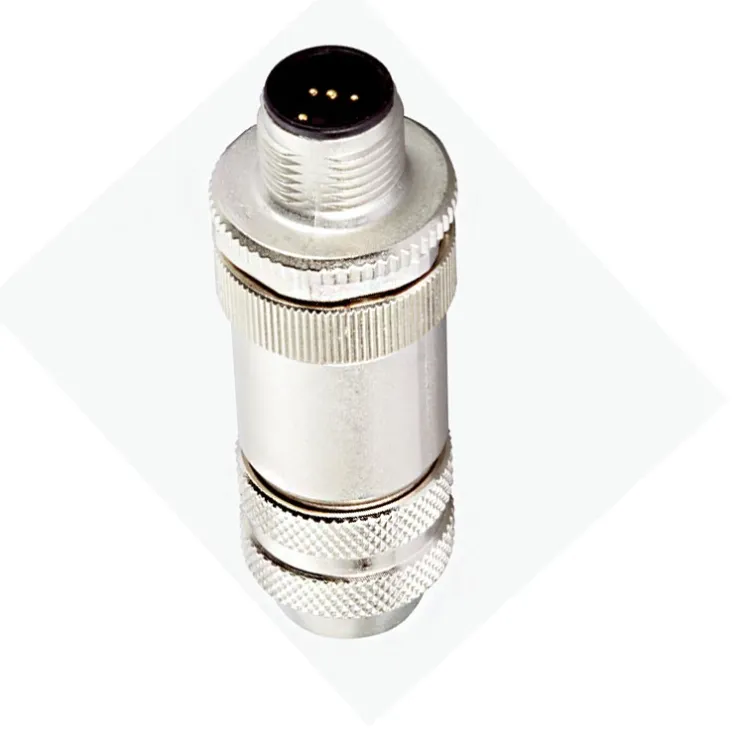

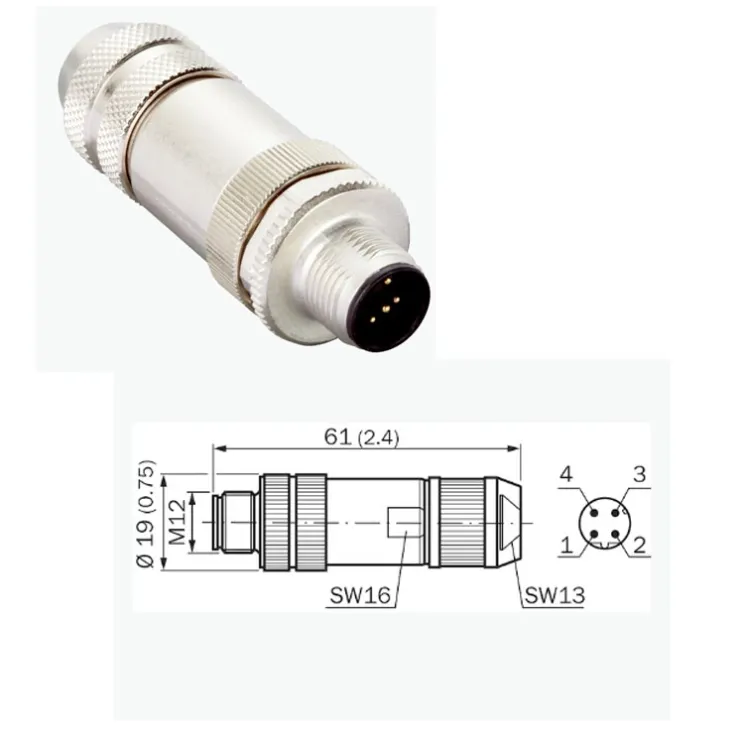

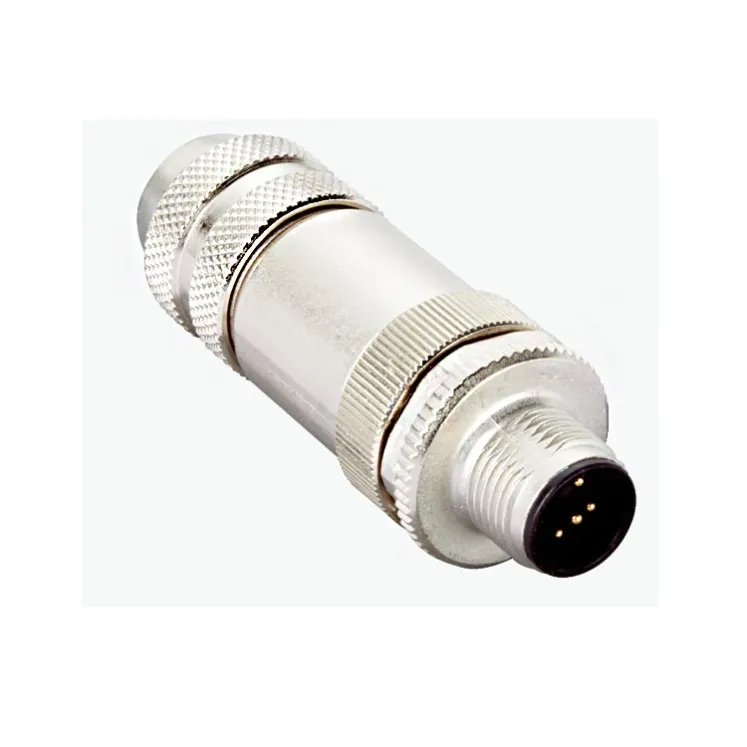

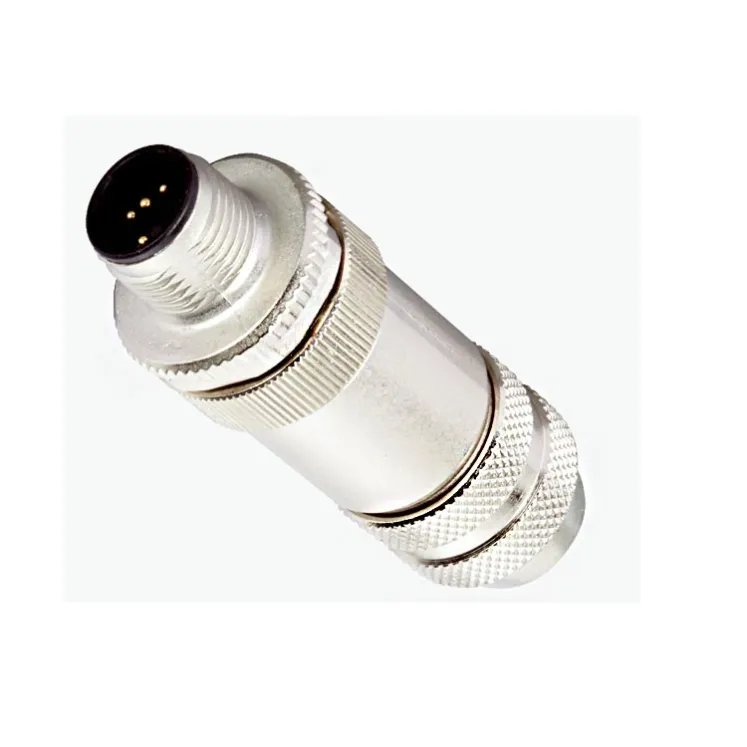

SICK STE-1204-GZ field-attachable connector, part 6048261. M12 4-pole IDC quick connection for on-site cable assembly.
Overview
The SICK STE-1204-GZ (part number 6048261) is a field-attachable connector with IDC quick connection technology. It allows an M12 sensor cable to be assembled on site, combining the wiring flexibility of open cables with the convenience of a circular connector at the sensor end.
How It Works
The cable is connected inside the connector body using insulation displacement contacts (IDC), which pierce the insulation and create a reliable connection without soldering. The assembled connector then mates with the sensor's M12 port.
Key Features
- Field-attachable connector, M12 format class
- Part number 6048261
- IDC quick connection without special tools
- Individual cable length on site
- Reliable contact technology for industrial use
Typical Applications
- On-site assembly of sensor cables with custom lengths
- Service replacement of damaged sensor connections
- Flexible machine wiring with connectorized sensor ends
- Cost-effective cabling for single installations
Specifications
Attribute | Value |
|---|---|
Model | SICK STE-1204-GZ |
Part number | 6048261 |
Accessory type | Connection and mounting technology |
Installation and Setup Notes
Install the accessory according to the mating product's documentation, verify secure mechanical fixation and strain relief for cables, and inspect the connection during regular machine maintenance to keep the sensing chain reliable.
Frequently Asked Questions
Why choose a field-attachable connector?
It combines custom cable lengths with a standardized connector interface at the sensor.
Are special tools required?
IDC technology is designed for simple assembly per the product instructions.
Which pole configurations exist?
The 1204 code identifies the M12, 4-pole configuration of this variant.
