SICK RLY3-EMSS300 Sensor

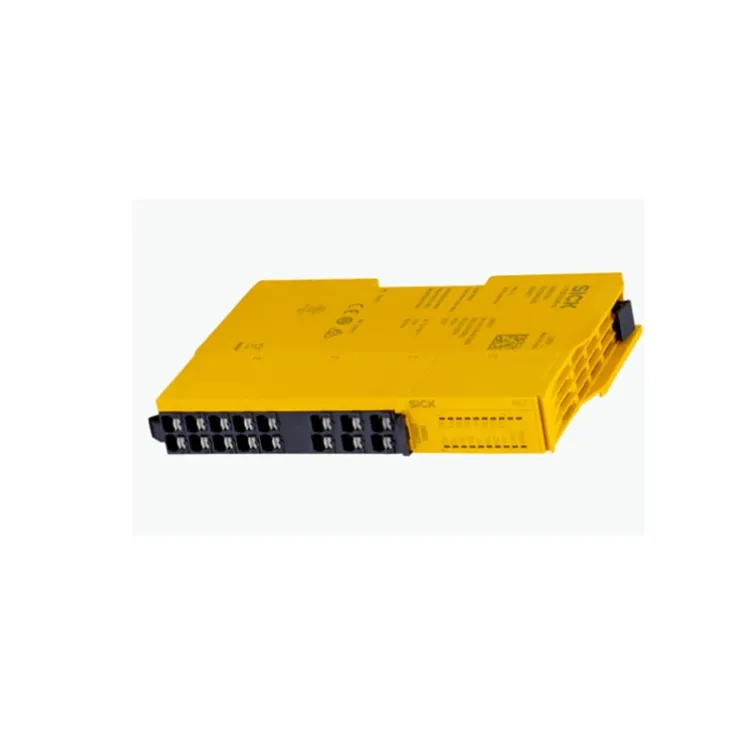

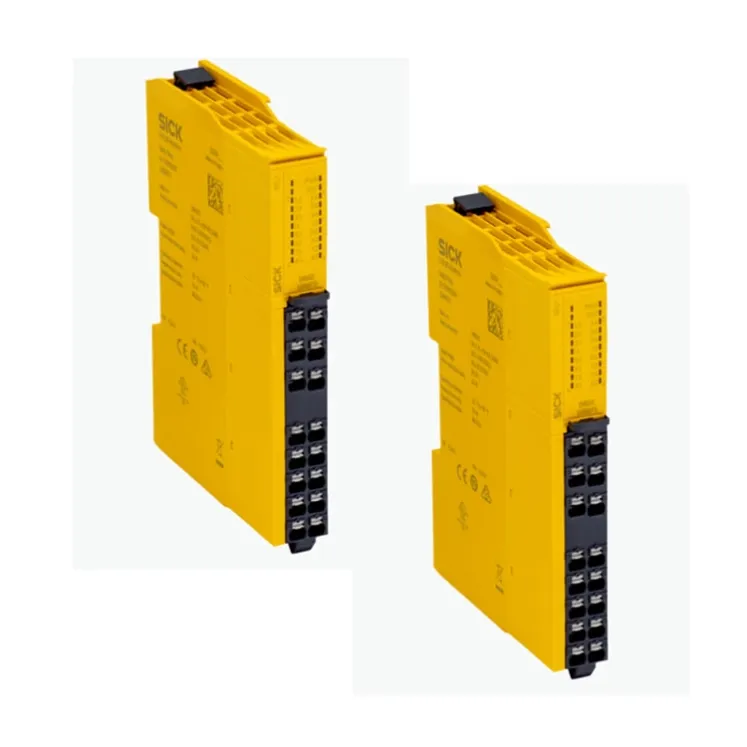

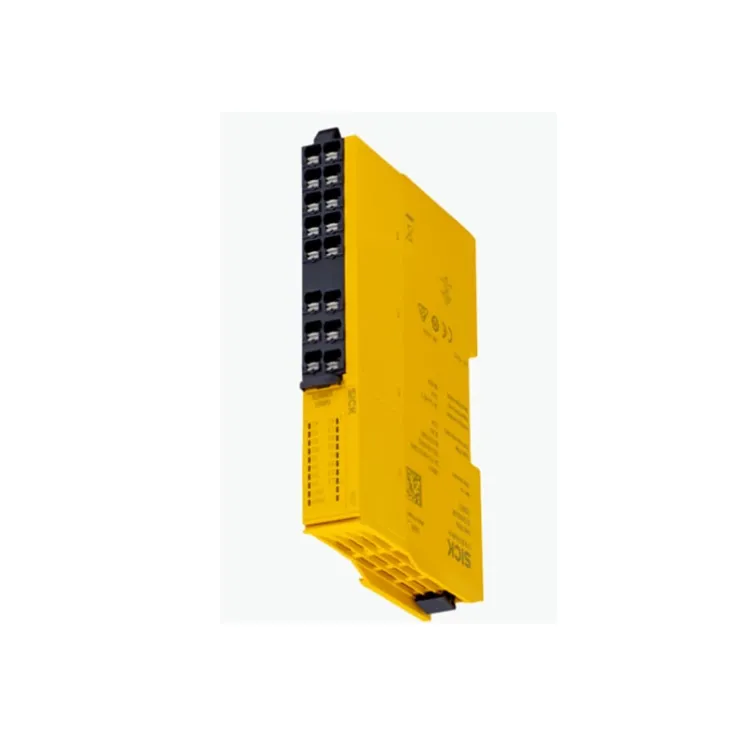

SICK RLY3-EMSS300 safety relay, part 1099973. ReLy family evaluation of safety sensors with guided-contact outputs.
Overview
The SICK RLY3-EMSS300 (part number 1099973) is a safety relay of the ReLy family. It evaluates safety sensor signals, such as emergency stops and guard switches, and switches safe outputs for the machine control, supporting dependable safety functions in industrial machinery.
How It Works
Safety input circuits are monitored for integrity; with the inputs activated and healthy, the guided-contact outputs enable machine operation. Sensor tripping or internal faults open the outputs, ensuring the hazardous motion stops safely.
Key Features
- Safety relay for sensor signal evaluation
- Part number 1099973
- Safe guided-contact outputs
- Supports emergency stops and guard switches
- Compact housing for control cabinet integration
- Reliable diagnostics for safety circuits
Typical Applications
- Emergency stop circuit evaluation
- Guard switch monitoring on machines
- Safety function integration on production equipment
- Safety retrofits on processing machinery
- Stop function realization for guarded access points
Specifications
Attribute | Value |
|---|---|
Model | SICK RLY3-EMSS300 |
Part number | 1099973 |
Device type | Safety relay, ReLy family |
Installation and Setup Notes
Connect the safety sensors per the input configuration and wire the outputs for dual-channel control monitoring where required. Test reset behavior and the full stop path during commissioning, and document the safety function test results as part of machine validation.
Frequently Asked Questions
How does the EMSS300 differ from the EMSS100?
The variants differ in input configuration and function scope; select per the sensor set of the machine.
Can it evaluate light curtains?
Depending on the variant's input type, OSSD outputs of light curtains can be evaluated; check the connection diagram.
Is manual reset supported?
Yes, reset behavior is configured per the machine safety concept.
