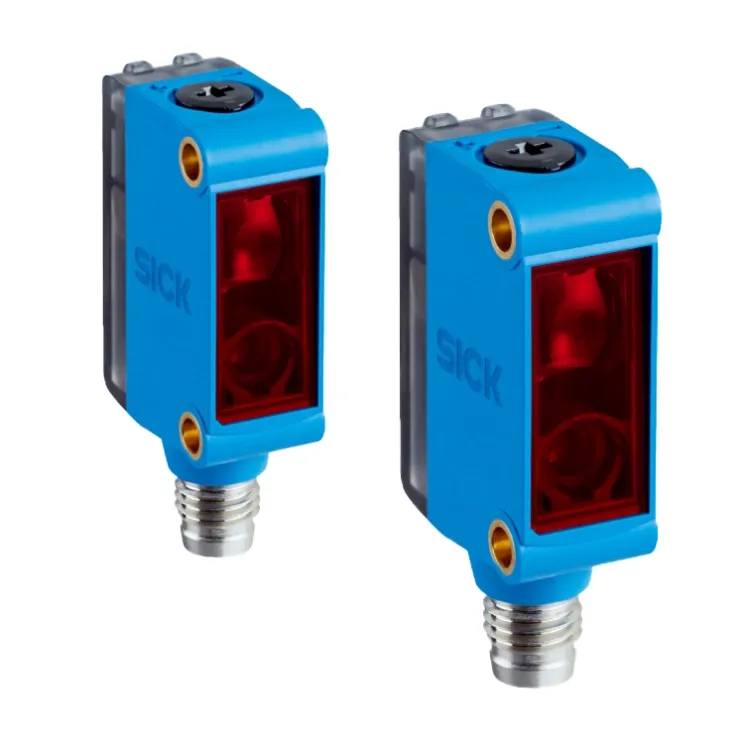

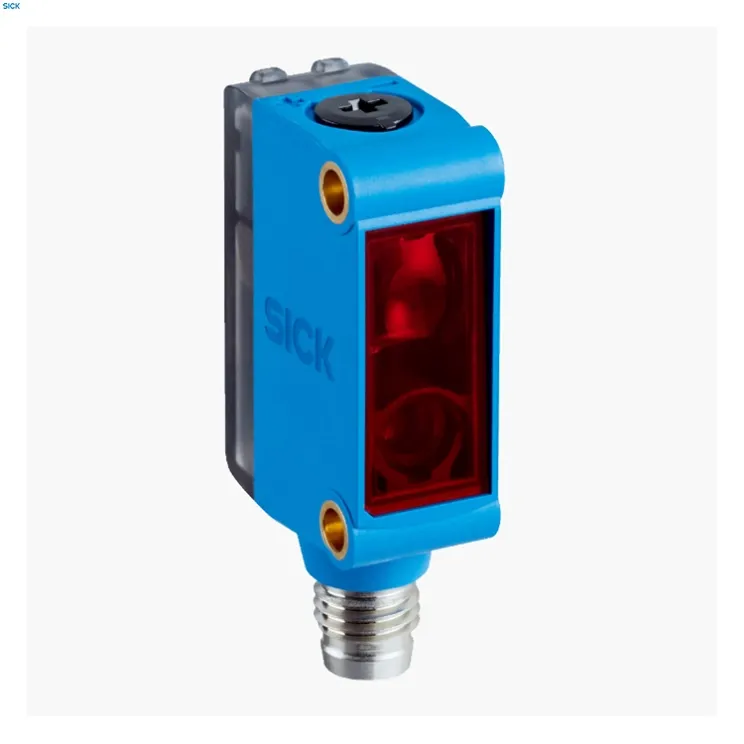

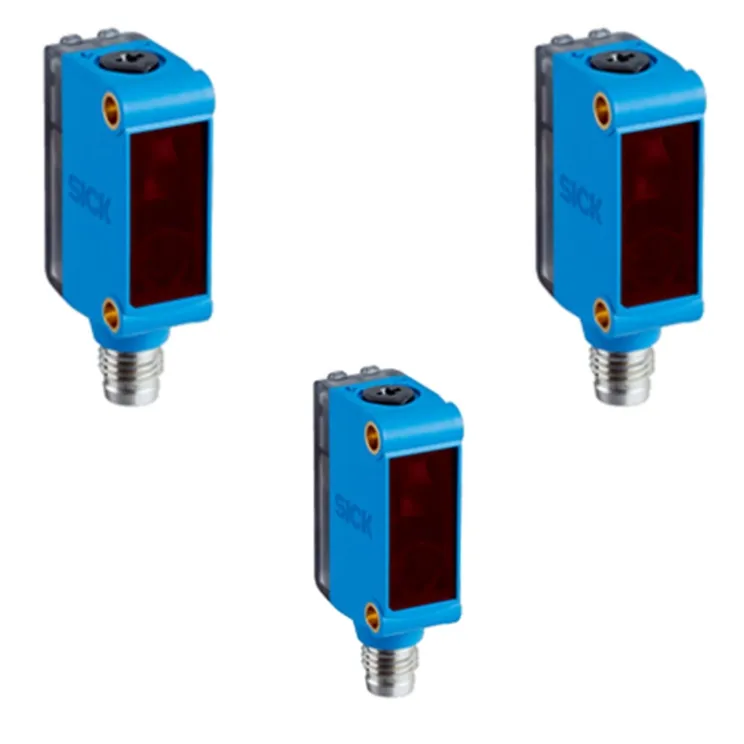

SICK GL6-P4212 Photoelectric sensor
SICK GL6-P4212 miniature photoelectric sensor with dual-lens optics, PNP, part 1062110. Precise small-part detection in electronics and assembly machines.
Overview
The SICK GL6-P4212 (part number 1062110) is a miniature photoelectric sensor from the G6 family with dual-lens optics and PNP output. The tiny housing and focused optical system are aimed at small-part detection in electronics production, assembly modules and compact handling equipment.
How It Works
The dual-lens optical system separates the emission and reception paths, giving the miniature sensor a well-defined optical axis and stable switching behavior. Light reflected from the target triggers the output when it exceeds the set threshold.
Key Features
- Miniature G6 housing for extremely confined spaces
- Dual-lens optics for a precise optical axis
- PNP switching output (P order code)
- Part number 1062110
- Precise light spot for small targets
- Fast response suited to small-part handling
Typical Applications
- Detection of electronic components on feeders
- Presence checks in miniature assembly stations
- Monitoring of small parts on micro conveyors
- Verification of insert positions in compact fixtures
- Sensing in medical device and watch manufacturing equipment
Specifications
Attribute | Value |
|---|---|
Model | SICK GL6-P4212 |
Part number | 1062110 |
Optics | Dual-lens |
Detection principle | Miniature photoelectric switching |
Output type | PNP switching output |
Installation and Setup Notes
Miniature sensors reward careful mounting: use a rigid bracket, protect the cable with strain relief, and keep the optical faces clean. Because the light spot is small, precise alignment is quick but must be checked after maintenance. Test with the smallest and darkest production target to confirm the switching margin.
Frequently Asked Questions
Why dual lenses?
They stabilize the optical axis in a tiny housing, improving switching reliability for small targets.
Is this sensor suitable for pin detection on connectors?
Yes, the precise spot and miniature size are typical for pin and small-part checks in electronics production.
What output does the GL6-P4212 provide?
A PNP switching output.
Related Photoelectric Sensors
For background suppression in a miniature format, see the SICK GTB2S-N1451. For micro diffuse detection, see the SICK WTB2S-2N1330.
